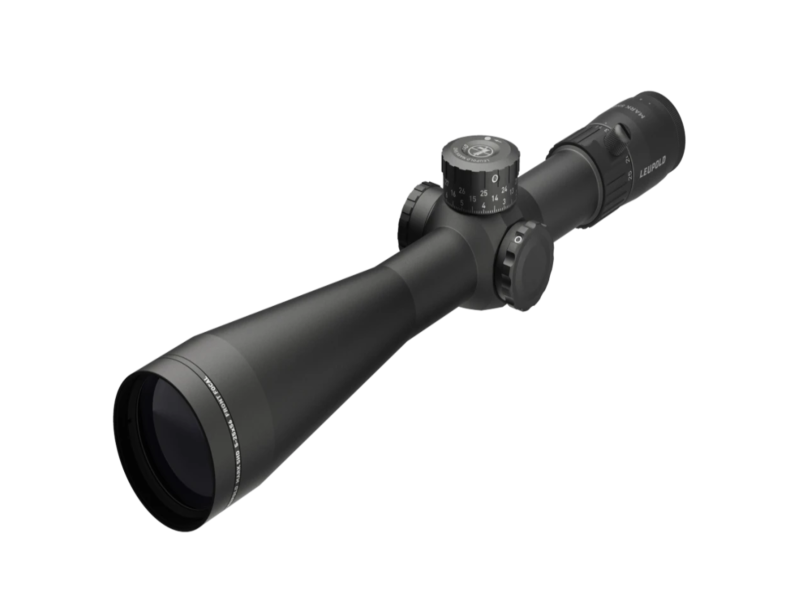

Leupold Mark 5HD 5-25X56 M5C3 FFP TREMOR3

The Leupold Mark 5HD riflescope delivers superior edge-to-edge clarity and extreme low-light performance, while the versatility of its multiple reticle options will give you an advantage at the range or in the field. With three revolutions of elevation adjustment, the Mark 5HD scope was built to max out the performance of the latest long-range rifles and ammo. The Mark 5HD 5-25x56mm weighs up to 20 ounces lighter than other riflescopes in its class, giving the user an advantage in the field or at the range. The versatile 5-25x magnification lets you dominate midrange shots, while also giving you the flexibility to reach out to long distances. With three revolutions of elevation adjustment and multiple reticle options, this scope will max out the performance of the latest long-range rifles and ammunition, guaranteed.

Built around Leupold’s Professional-Grade Optical System, the Mark 5HD offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter. Ergonomically designed with more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, the Mark 5HD is built to put accurate fire downrange faster. The unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. For those who are interested in a high quality riflescope should check out Leupold optics.

FEATURES

5:1 Zoom Ratio

• A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.

Professional Grade Optical System

• Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.

1/10 Mil OR 1/4 MOA Click Adjustment

• The available 1/10th MIL (M5C3) or 1/4 MOA (M1C3) click windage and elevation provide precise and repeatable dialing for any shooter.

Motion Sensor Technology (MST)

• Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.

Removeable Throw Lever

• The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.

35MM Maintube

• Larger 34mm and 35mm maintubes produce ample windage and elevation adjustment travel, which is ideal for long-range shooting.

Waterproof, Fogproof, & Shockproof

• Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

M5C3 Or M1C3 Zerolock Adjustments

• M5C3 ZeroLock® Adjustments: These low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero. M1C3 ZeroLock® Adjustments: These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.

RETICULE INFO

TREMOR3

• Designed by Horus Vision®
• Utilizes a MIL based system
• Grid style reticle provides precise aiming points for bullet drop compensation and wind correction
• Centralized dots at crosshair intersections for refined aiming points
• Chevron MIL markers measure 0.1 MIL for precise measurements
• Increases number of holdover dots over the Tremor 2
• Includes rapid ranging marks above the central horizontal line
• Open upper half of the reticle for observation and spotting
• Multiple aiming points provide excellent corrections for follow-up shot placement
• Numbered lines make for quick line identification
• Front (first) focal plane

INFO

• Adjustable Parallax: Side Focus
• BDC Dial Included: No
• Custom Dial Compatible: Yes
• Daylight Bright Illumination: No
• Custom Dial System (CDS): No
• Elevation Adjustment Type: M5C3
• Electronic Reticle Level: No
• Guard-ion Lens Coating: No
• Illuminated: No
• Locking Dial: Yes
• Magnification Type: Variable
• Motion Sensor Technology (MST): No
• Nightvision Compatible Illumination: No
• Revolution Indicator: Yes
• Reticule: FFP Tremor 3
• Rezero Type: Set Screw
• Reticule Type: First Focal Plane
• Adjustable Objective: No
• Windage Adjustment Type: Capped
• Weight: 30 oz
• Elevation Adjustment Value per Click: 0.1Mil
• Elevation Adjustment Range (MOA): 120
• Elevation Adjustment Range (MIL): 35
• Elevation Adjustment Range (cm @ 100m): 349
• Elevation Adjustment Per Revolution: 10.5 MIL
• Elevation Dial Travel Limit: 30Mil
• Windage Adjustment Value per Click: 0.1Mil
• Windage Adjustment Range (MOA): 60
• Windage Adjustment Range (MIL): 17
• Windage Adjustment Range (cm @ 100m): 175
• Windage Adjustment Per Revolution: 10 Mil
• Magnification Max: 25
• Magnification Min: 5
• Objective Lens Diameter (mm): 56
• Linear FOV Low Mag (ft@100yds): 20.4
• Linear FOV High Mag (ft@100yds): 4.2
• Angular FOV Low Mag (Degrees): 3.9
• Angular FOV High Mag (Degrees): .8
• Eye Relief Low Mag (in): 3.6
• Eye Relief High Mag (in): 3.8
• Minimum Parallax-Free Distance (yd): 50

SPECIFICATIONS

• Manufacturer: Nikon
• MPN: 16524
• UPC: 018208165247
• Capacity: N/A
• Sights: N/A
• Caliber: N/A
• Barrel Length: N/A
• Weight: 17.5 oz
• Overall Length: N/A
• Model: Leupold Mark 5HD 5-25X56 M5C3 FFP TREMOR3
• Finish: Black

WHAT'S IN THE BOX

• Leupold Mark 5HD 5-25X56 M5C3 FFP TREMOR3
• Owners Manual
• Scope Covers
