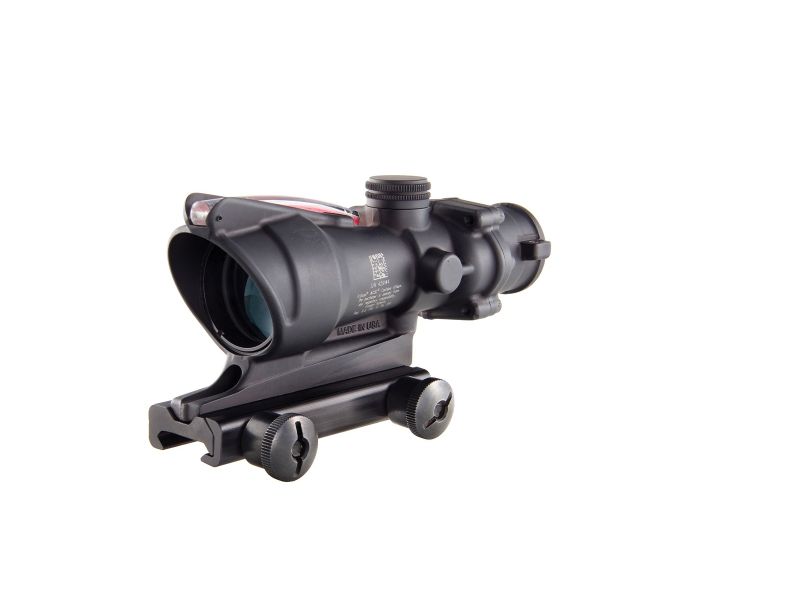

Trijicon ACOG 4x32 BAC Riflescope 223/556 BDC

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is designed to be extremely durable and reliable. Combining traditional, precise distance marksmanship with CQB speed, many variants include a bullet drop compensated (BDC) reticle. Every feature of its design was chosen for a single purpose: to provide increased hit potential in all lighting conditions. The 4x32 ACOG scope provides a dual-illuminated reticle using fiber optics and tritium for a bright aiming point in any light condition. The ranging reticle allows for bullet drop compensation out to 600 meters without any manual adjustments.

FEATURES

ALWAYS ON, ALWAYS READY

• Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

TAKE CONTROL

• Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.

RUGGED, RELIABLE HOUSING DESIGN

• Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.

“BOTH EYES OPEN” DESIGN

• “Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

OUTSTANDING CLARITY

• The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.

EXACT TARGET DISTANCES & HOLDS

• Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.

COMBAT PROVEN

• No other magnified optic has been used more in combat than the ACOG.

SHOCK-RESISTANT

• Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

WATERPROOF

• Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.

INFO

• Weight: 15.1 oz
• Magnification: 4x
• Objective Size: 32mm
• Reticule Pattern: Crosshair
• Day Reticule Color: Red
• Night Reticule Color: Red
• Bullet Drop Compensating (BDC): Yes
• Caliber: .223/5.56
• Bindon Aiming Concept (BAC): Yes
• Illumination Source: Fiber Optics & Tritium
• Power Source: Fiber Optics & Tritium
• Eye Relief: 1.5"
• Exit Pupil: 0.32"
• Field of View (Degrees): 7°
• Field of View (Feet): 36.8 ft @ 100yds
• Mount: Flattop Thumbscrew Mount (TA51)
• Housing Material: Forged Aluminum
• Finish: Matte Black

SPECIFICATIONS

• Manufacturer: Trijicon
• MPN: TA31-CH
• UPC: 719307303386
• Capacity: N/A
• Sights: N/A
• Caliber: N/A
• Barrel Length: N/A
• Weight: 15.1 oz
• Overall Length: N/A
• Model: Trijicon ACOG 4x32 BAC Riflescope 223/556 BDC
• Finish: Black

WHAT'S IN THE BOX

• Trijicon ACOG 4x32 BAC Riflescope 223/556 BDC
• Thumbscrew Flattop Adapter (TA51)
• 4x32 Scopecoat (TA64)
• LENSPEN (TA56)
• Lanyard Assembly for Adjuster Caps (TA71E)
• Trijicon Logo Sticker (PR15)
• ACOG BAC Manual. Warranty Card
